cloudformation basics

Why Automate?

1. Reproducible – Automate infrastructure creation
2. Automatic Dependencies – what to create first , second, next –  are resolved automatically – based on the References (Refs) in the stack definition.

Parts of a template

Description

Parameters (Input Parameters)  e.g. VPC Name, Region

Mappings – For Multi Region Templates – customizing per region – especially since AMI Id is different in different regions (for the same image)

Pseudo Parameters – available by default – Account ID, Region

Resources : {

Refs

Installing / Configuring Software on Ec2 instance using UserData and Fn::Join Fn:: Base64

}

Outputs  : e.g. wordpress URL after the entire stack is created

E.g. Creating a bastion host – What’s needed (Ec2, EIP and a security group for SSH rule) and Dependencies

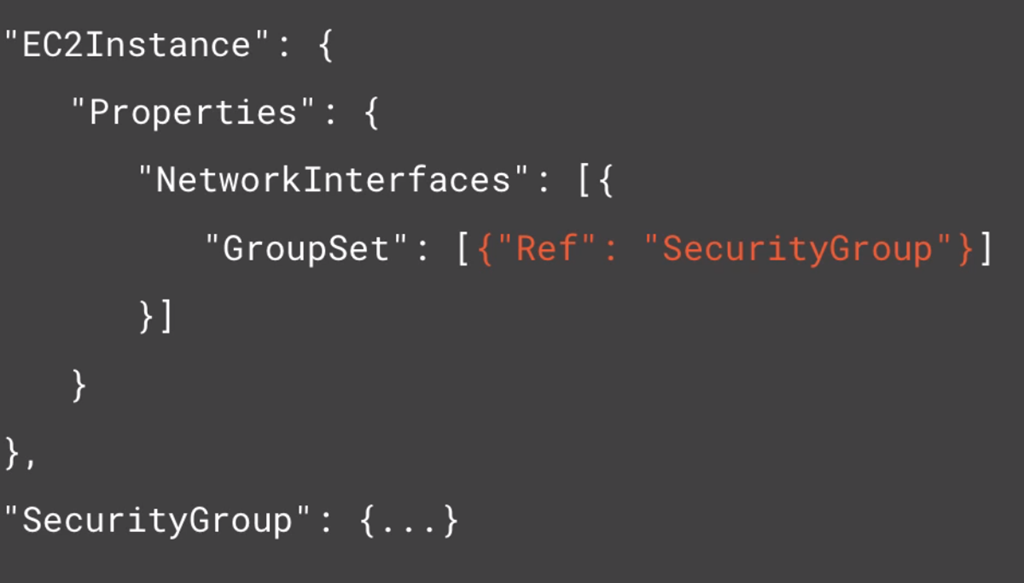

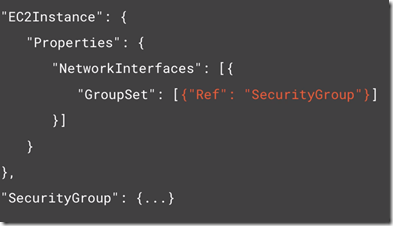

EC2 Instance – Security Group id is a needed property for the EC2 instance

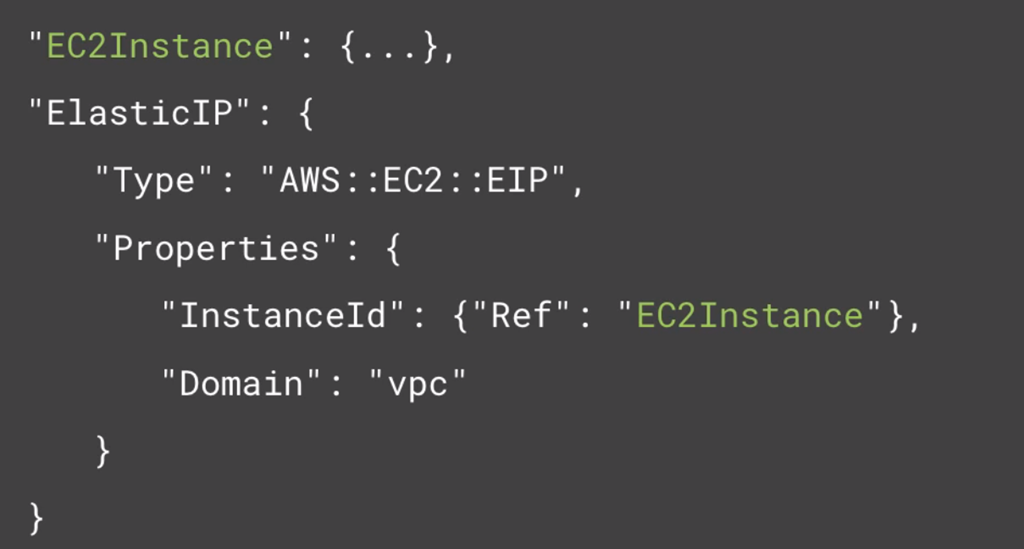

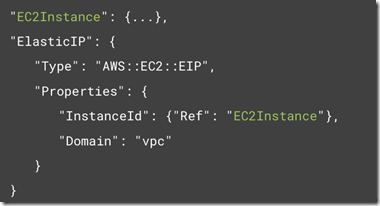

EIP addresses need to know the EC2 instance Id



Check Resource Quotas in template first

Sample WordPress Creation JSON Stack

{
    “AWSTemplateFormatVersion”: “2010-09-09”,
    “Description”: “Simple WordPress”,
    “Parameters”: {
        “VPC”: {
            “Description”: “The default VPC”,
            “Type”: “AWS::EC2::VPC::Id”
        },
        “Subnets”: {
            “Description”: “At least two public subnets from default VPC.”,
            “Type”: “List<AWS::EC2::Subnet::Id>”
        }
    },
    “Mappings”: {
        “RegionMap”: {
            “eu-west-1”: {“AMI”: “ami-bff32ccc”},
            “ap-southeast-1”: {“AMI”: “ami-c9b572aa”},
            “ap-southeast-2”: {“AMI”: “ami-48d38c2b”},
            “eu-central-1”: {“AMI”: “ami-bc5b48d0”},
            “ap-northeast-2”: {“AMI”: “ami-249b554a”},
            “ap-northeast-1”: {“AMI”: “ami-383c1956”},
            “us-east-1”: {“AMI”: “ami-60b6c60a”},
            “sa-east-1”: {“AMI”: “ami-6817af04”},
            “us-west-1”: {“AMI”: “ami-d5ea86b5”},
            “us-west-2”: {“AMI”: “ami-f0091d91”}
        }
    },
    “Resources”: {
        “EC2Instance”: {
            “Type”: “AWS::EC2::Instance”,
            “Properties”: {
                “ImageId”: {“Fn::FindInMap”: [“RegionMap”, {“Ref”: “AWS::Region”}, “AMI”]},
                “InstanceType”: “t2.nano”,
                “NetworkInterfaces”: [{
                    “AssociatePublicIpAddress”: “true”,
                    “DeviceIndex”: “0”,
                    “GroupSet”: [{“Ref”: “WebserverSecurityGroup”}],
                    “SubnetId”: {“Fn::Select”: [“0”, {“Ref”: “Subnets”}]}
                }],
                “Tags”: [{
                    “Key”: “Name”,
                    “Value”: “simple-wordpress”
                }],
                “UserData”: {“Fn::Base64”: {“Fn::Join”: [“”, [
                    “#!/bin/bash -ex\n”,
                    “yum install -y php php-mysql mysql httpd\n”,
                    “cd /var/www/html\n”,
                    “curl -O https://raw.githubusercontent.com/wp-cli/builds/gh-pages/phar/wp-cli.phar\n”,
                    “php wp-cli.phar core download\n”,
                    “php wp-cli.phar core config –dbname=wordpress –dbuser=wordpress –dbpass=wordpress –dbhost=”, {“Fn::GetAtt”: [“Database”, “Endpoint.Address”]}, “\n”,
                    “php wp-cli.phar core install –url=http://$(curl http://169.254.169.254/latest/meta-data/public-hostname) –title=Globomantics-Blog –admin_user=admin –admin_password=UBeDzefeX3jihRQUkrGwj2qYWnyBcp –admin_email=adam@globomatics.com –skip-email\n”,
                    “rm wp-cli.phar\n”,
                    “service httpd start\n”
                ]]}}
            }
        },
        “DBSubnetGroup”: {
            “Type”: “AWS::RDS::DBSubnetGroup”,
            “Properties”: {
                “DBSubnetGroupDescription”: “DB subnet group”,
                “SubnetIds”: {“Ref”: “Subnets”}
            }
        },
        “Database”: {
            “Type”: “AWS::RDS::DBInstance”,
            “Properties”: {
                “AllocatedStorage”: “5”,
                “DBInstanceClass”: “db.t2.micro”,
                “DBInstanceIdentifier”: “simple-wordpress”,
                “DBName”: “wordpress”,
                “Engine”: “MySQL”,
                “MasterUsername”: “wordpress”,
                “MasterUserPassword”: “wordpress”,
                “VPCSecurityGroups”: [{“Fn::GetAtt”: [“DatabaseSecurityGroup”, “GroupId”]}],
                “DBSubnetGroupName”: {“Ref”: “DBSubnetGroup”},
                “StorageType”: “gp2”
            }
        },
        “WebserverSecurityGroup”: {
            “Type”: “AWS::EC2::SecurityGroup”,
            “Properties”: {
                “GroupDescription”: “simple-wordpress-webserver”,
                “VpcId”: {“Ref”: “VPC”},
                “SecurityGroupIngress”: [{
                    “CidrIp”: “0.0.0.0/0”,
                    “FromPort”: 80,
                    “IpProtocol”: “tcp”,
                    “ToPort”: 80
                }]
            }
        },
        “DatabaseSecurityGroup”: {
            “Type”: “AWS::EC2::SecurityGroup”,
            “Properties”: {
                “GroupDescription”: “simple-wordpress-database”,
                “VpcId”: {“Ref”: “VPC”},
                “SecurityGroupIngress”: [{
                    “IpProtocol”: “tcp”,
                    “FromPort”: “3306”,
                    “ToPort”: “3306”,
                    “SourceSecurityGroupId”: {“Ref”: “WebserverSecurityGroup”}
                }]
            }
        }
    },
    “Outputs”: {
        “WordPressURL”: {
            “Description”: “The URL of the simple WordPress environment.”,
            “Value”: {“Fn::Join”: [“”, [“http://”, {“Fn::GetAtt”: [“EC2Instance”, “PublicIp”]}]]}
        }
    }
}

AWS CloudFormation Best Practices

Best practices are recommendations that can help you use AWS CloudFormation more effectively and securely throughout its entire workflow. Learn how to plan and organize your stacks, create templates that describe your resources and the software applications that run on them, and manage your stacks and their resources. The following best practices are based on real-world experience from current AWS CloudFormation customers.

Planning and organizing

• Organize Your Stacks By Lifecycle and Ownership

• Use Cross-Stack References to Export Shared Resources

• Use IAM to Control Access

• Reuse Templates to Replicate Stacks in Multiple Environments

• Verify Quotas for All Resource Types

• Use Nested Stacks to Reuse Common Template Patterns

Creating templates

• Do Not Embed Credentials in Your Templates

• Use AWS-Specific Parameter Types

• Use Parameter Constraints

• Use AWS::CloudFormation::Init to Deploy Software Applications on Amazon EC2 Instances

• Use the Latest Helper Scripts

• Validate Templates Before Using Them

Managing stacks

• Manage All Stack Resources Through AWS CloudFormation

• Create Change Sets Before Updating Your Stacks

• Use Stack Policies

• Use AWS CloudTrail to Log AWS CloudFormation Calls

• Use Code Reviews and Revision Controls to Manage Your Templates

• Update Your Amazon EC2 Linux Instances Regularly
