Simple ROUTEs for a SINGLE NAT Instance

  1. Configuration – ELB in front of NAT instance.
  2. NAT instance in it’s own security group (NAT_SG); ELB in it’s own Security Group (ELB_SG)
  3. Inbound Rules – HTTP/S with a source of ELB_SG
  4. Outbound Rules – HTTP/S with a Destination of 0.0.0.0/0 (all)



Multi AZ Deployments  -and NATS

  • Each AZ needs it’s own NAT instance. This allows the NAT to retain the session for returning traffic – and route it back to the same instance that sent the traffic out.
  • NAT instances go straight to the IgW – not through the ALB / ELB or any firewall.

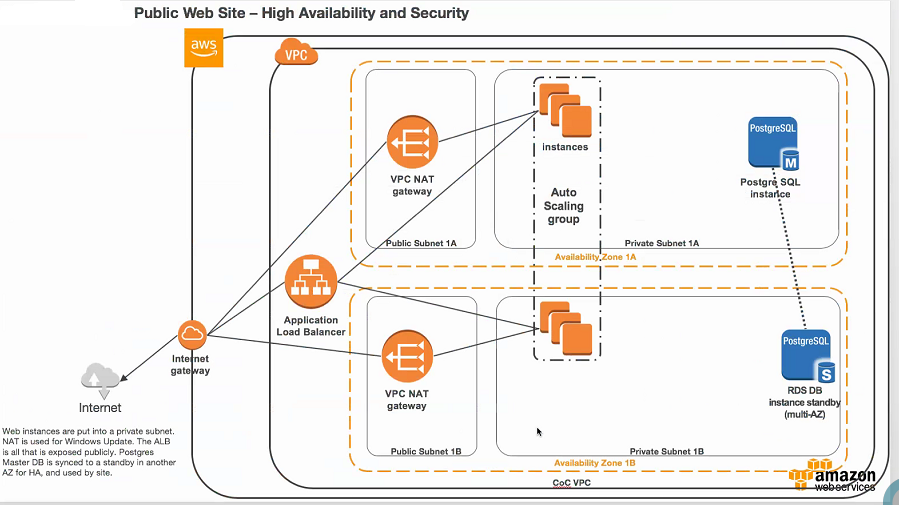

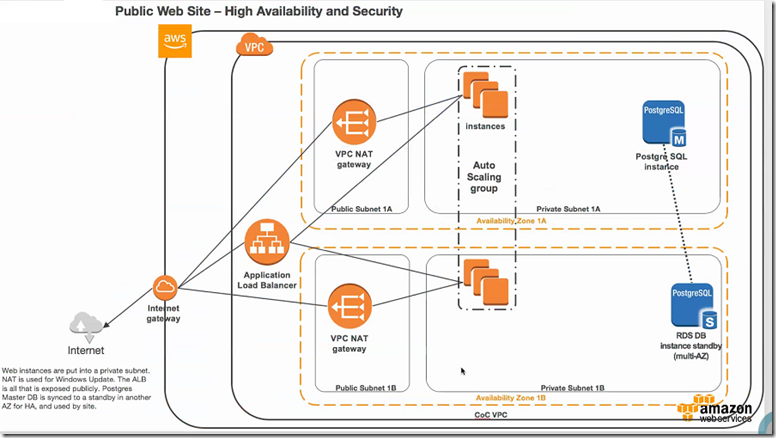

General_Architecture_for_HA_NAT_WebApp
